Power Winches

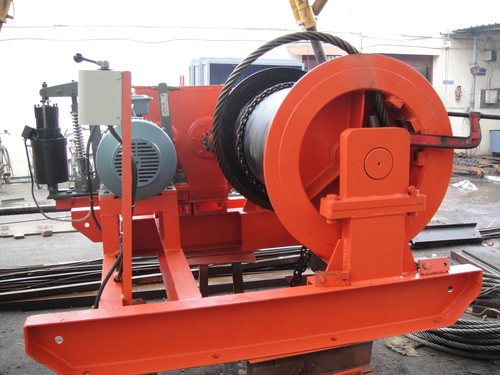

Electric Wire Rope Winch Machine :- Power driven winch machine are designed as per IS - 9507 -1979 and are suitable for heavy-duty applications.

Generally, winches with right hand operation are manufactured, however, the same can supply with other side operation also as per requirement.

Base frame :- Fabricated with rocked steel sections/plates properly ribbed, floored with chequered plate for working area, lifting lugs, anchorimg holes for foundation, provided.

Reducer :- 1st stage reduction with self made worm reduction gear box or of reputed make and other reduction with open spur gears and pinions.

Rope drum :- Steel fabricated drum duly machined, with flanges at both ends, winding capacity 100-meter pf wire rope. Drums with larger windings capacity cn also available.

Motor :- High starting torque, class 'B' insulation, 150 starts/Hr 415v, 50 hz, A.C. induction squirrel cage/slipring motors conforming to IS - 325 of reputed make like NGEF/SIMENS etc.

Control and control panel: The winch is operated by push button station/controller at 110v fixed on machine. The control equipement like triple pole reversing contractors, H.R.C. fuses, pilot lamp etc of reputed make like EE/BCH/L&T.

Brake :- Electromagnetic/Elector hydraulic thruster, double shoe type brake and /or hand operated brake provided as per requirement.

Test :-All machines are tested at 25% overloaded tested.

Warrantee :- 12 months warrantee from the date of delivery against any manufacturing defect at factory basis.

Improvement :- We reserve the right of effecting any technical improvement without any notice.
